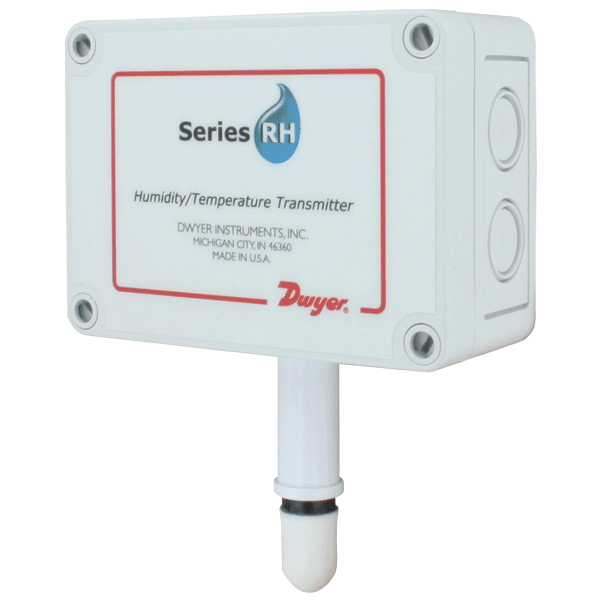

Product highlights:
- Temperature and humidity sensor RHP Series được ứng dụng phổ biến trong việc đo kiểm chất lượng không khí trong tòa nhà, nhà máy, phòng sạch và hệ thống máy điều hòa AHU, PAU.
- Sản phẩm được lắp đặt ở nhiều vị trí khác nhau như: ống gió, gắn trong phòng, gắn ngoài trời.
- Products with multiple output types: 4-20mA/ 0-10VDC/ Thermistor/ RTD, compatible with most DDC and PLC control devices from various manufacturers on the market.
- Additionally, the product features an LCD display that allows for the visual monitoring of accurate measurement values at the sensor installation location.
Detailed specifications:
Specifications Detailed description
Sensor type Temperature and humidity sensor
Power supply 15-35 VDC / 15-29 VAC
Measuring range -40 - 60°C/ 0-100%Rh
Output signal 4-20mA / 0-10VDC / Thermistor / RTD
Accuracy ±0.2(0.3)°C, 2(3)%RH
Operating temperature -40 to 60°C
Operating humidity 0-100%Rh
Protection level IP66
Origin Dwyer/ USA
HPLTECH is the official distributor of Dwyer products in the Vietnamese market.
If you have any questions, please contact our Hotline. (+84) 964041518 to receive free advice on using the product.
